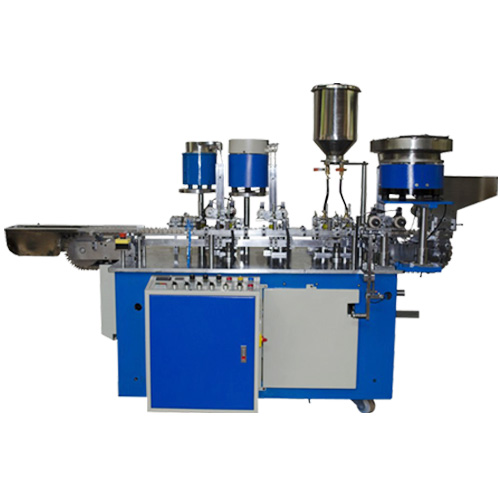

D F Ball Pen Ink Filling Machine

(MODEL:1UP-INK-DF/2UP-INK-DF/4UP-INK-DF)

Operations:
1) Ink Filling
2) Adaptor Fitting
3) Tip Fitting
4) Hot Foil Embossing (Optional)
5) Ejection (Optional)
6) Counting

Output:
1) Single Up : 60-80 pcs/pm
2) Double Up : 110-130 pcs/pm
3) Four Up : 200-220 pcs/pm

Power consumption :3.0 Kw

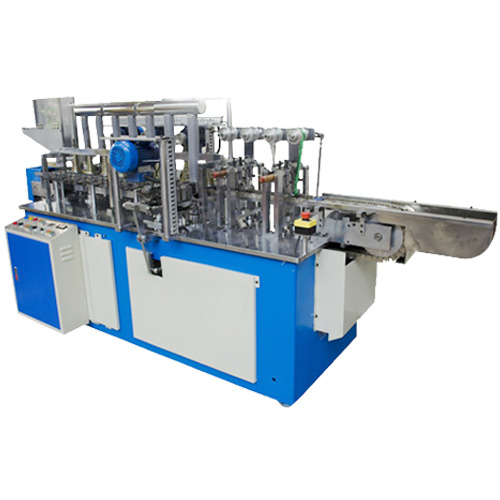

D F Ball Pen Chamfering Machine

(MODEL:1UP-CHF-DF/2UP-CHF-DF)

Operations:
1) Front facing
2) Rough Cone
3) Finish Cone
4) Back chamfering

Output:
1) Single Up :60-80 pcs/pm
2) Double Up :100-120 pcs/pm

Power consumption:3.5Kw

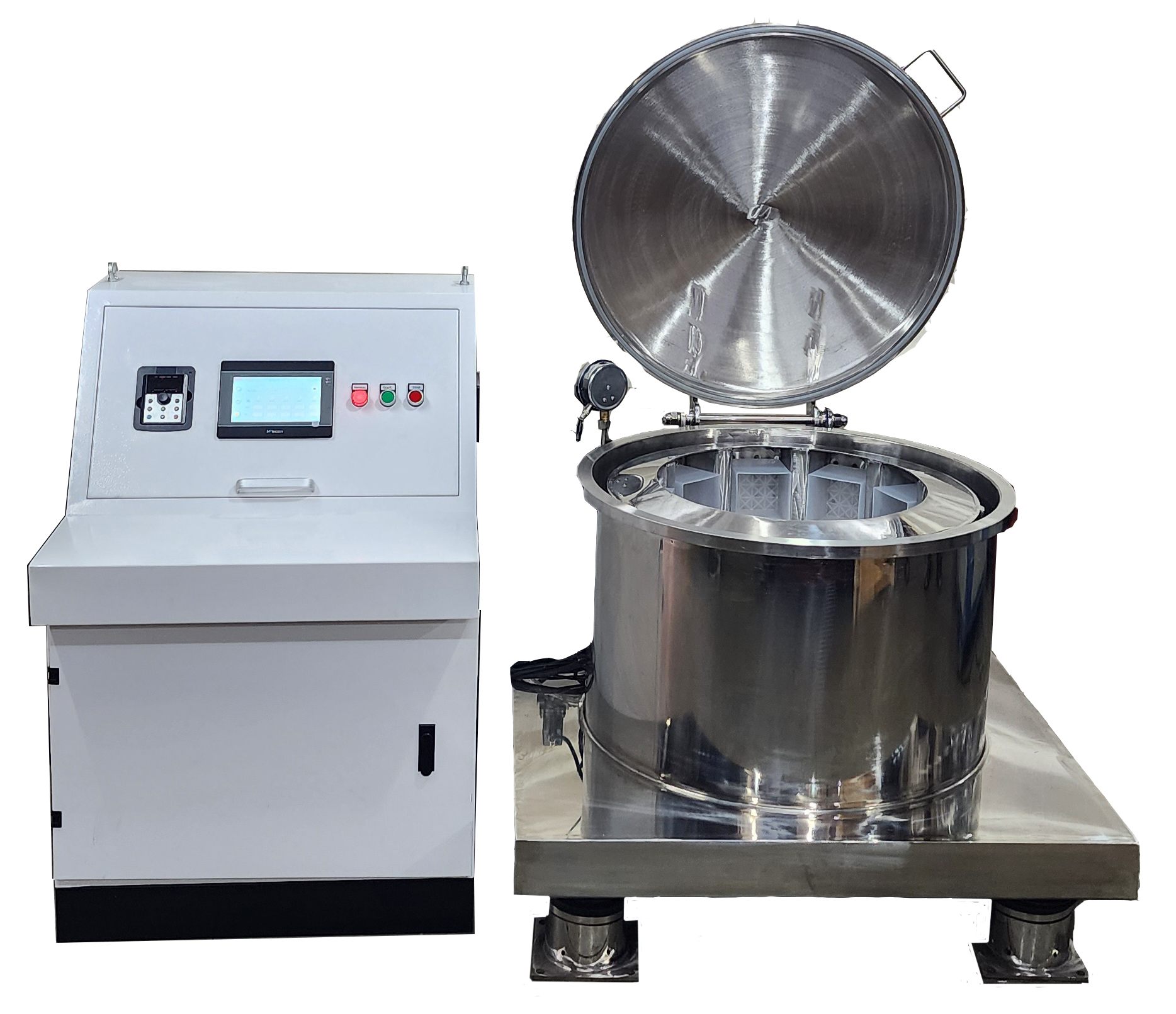

Vaccum Centrifugal Machine

(MODEL:VCNTF-30)

Operation: To remove air bubble from gel refills

Power consumption: 4.0 Kw

Ball Pen Assembly Machine

(MODEL :1UP-BLPN-ASS/2UP-BLPN-ASS)

Operations:
1) Automatic barrel orientation
2) Front cone fitting and threading
3) Back plug fitting and threading
4) Cap fitting
5) Ejection Stations
6) Counting

Output:
1) Single Up : 60 pcs/pm
2) Double Up : 100 pcs/pm

Power consumption : 4.0 Kw

Refill Ink Filling Machine – Drum Type

(MODEL:1UP-INK-DMT)

Operations:
1) Ink filling
2) Adaptor fitting
3) Hot embossing
4) Crimping (Optional)
5) Gel filling (Optional
6) Counting

Output:
1) Single Up : 80-100 pcs/pm

Power consumption : 3.0 Kw

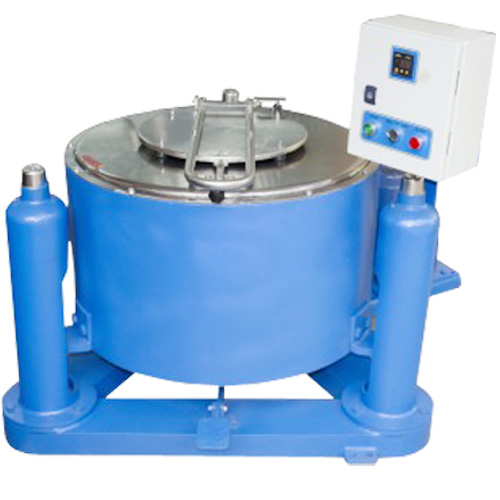

Centrifugal Machine

(MODEL:CNTF B12/CNTF B24)

Operation : To remove air bubble from pens or refills
Small : 12 Boxes/power consumption : 2.5 Kw
Big : 24 Boxes/Power consumption : 4.0 Kw

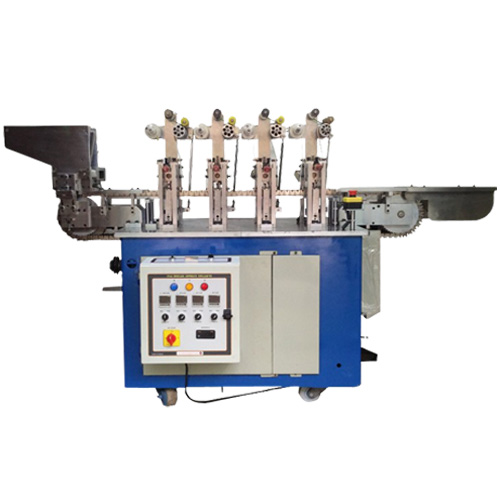

DF Hot Foil Embossing Machine

(MODEL : 4UP-HFEMB-DF)

Output:
Four Up : 200 pcs/pm
Power consumption : 4.0 Kw

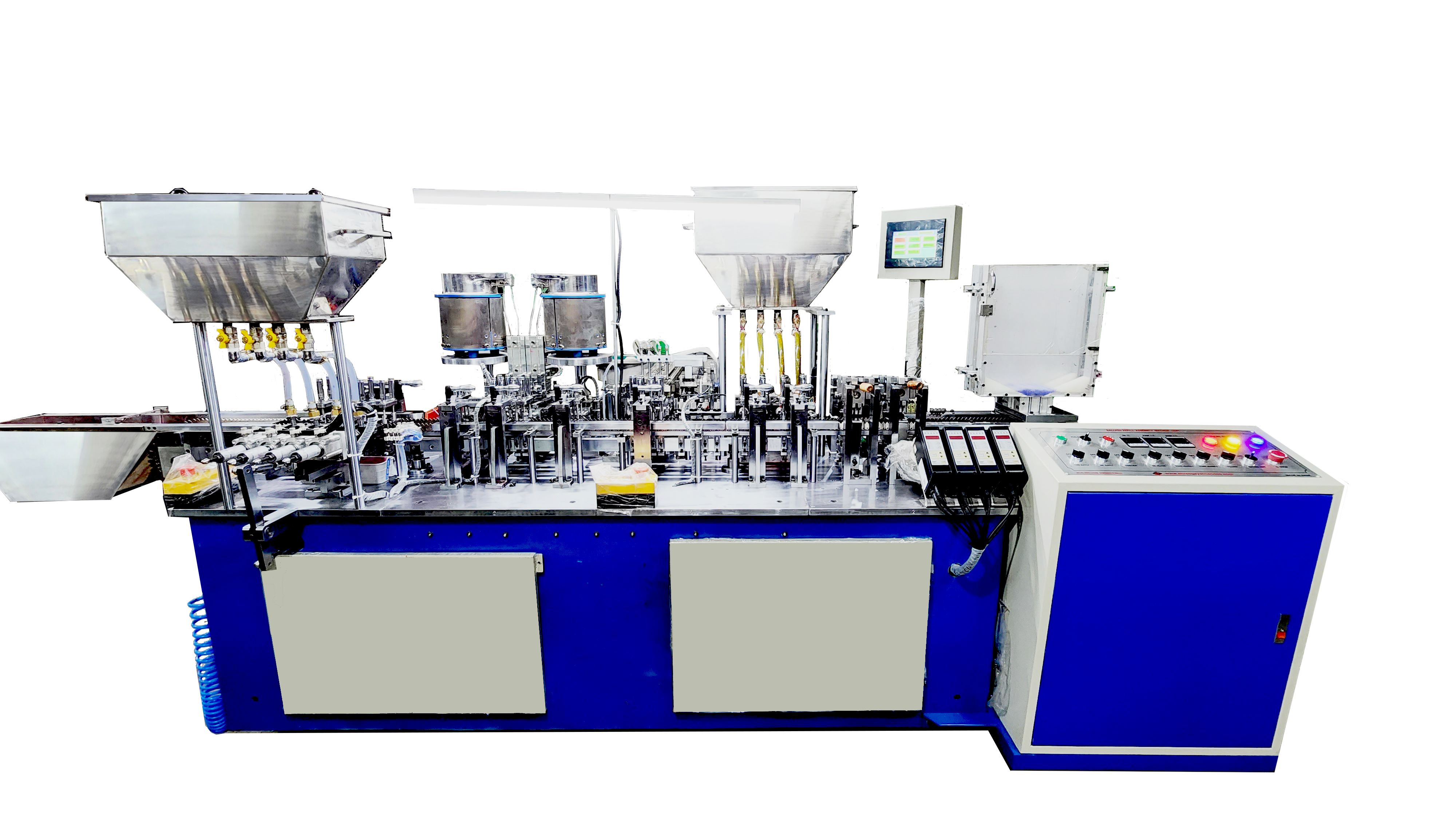

Gel Refill Assembly Machine

(MODEL : 2UP-INK-RF/4UP-INK-RF)

Output:
1) Two Up : 70-75 rfs/min
2) Four Up : 110-120 rfs/min
Power consumption : 3.0/3.5 Kw

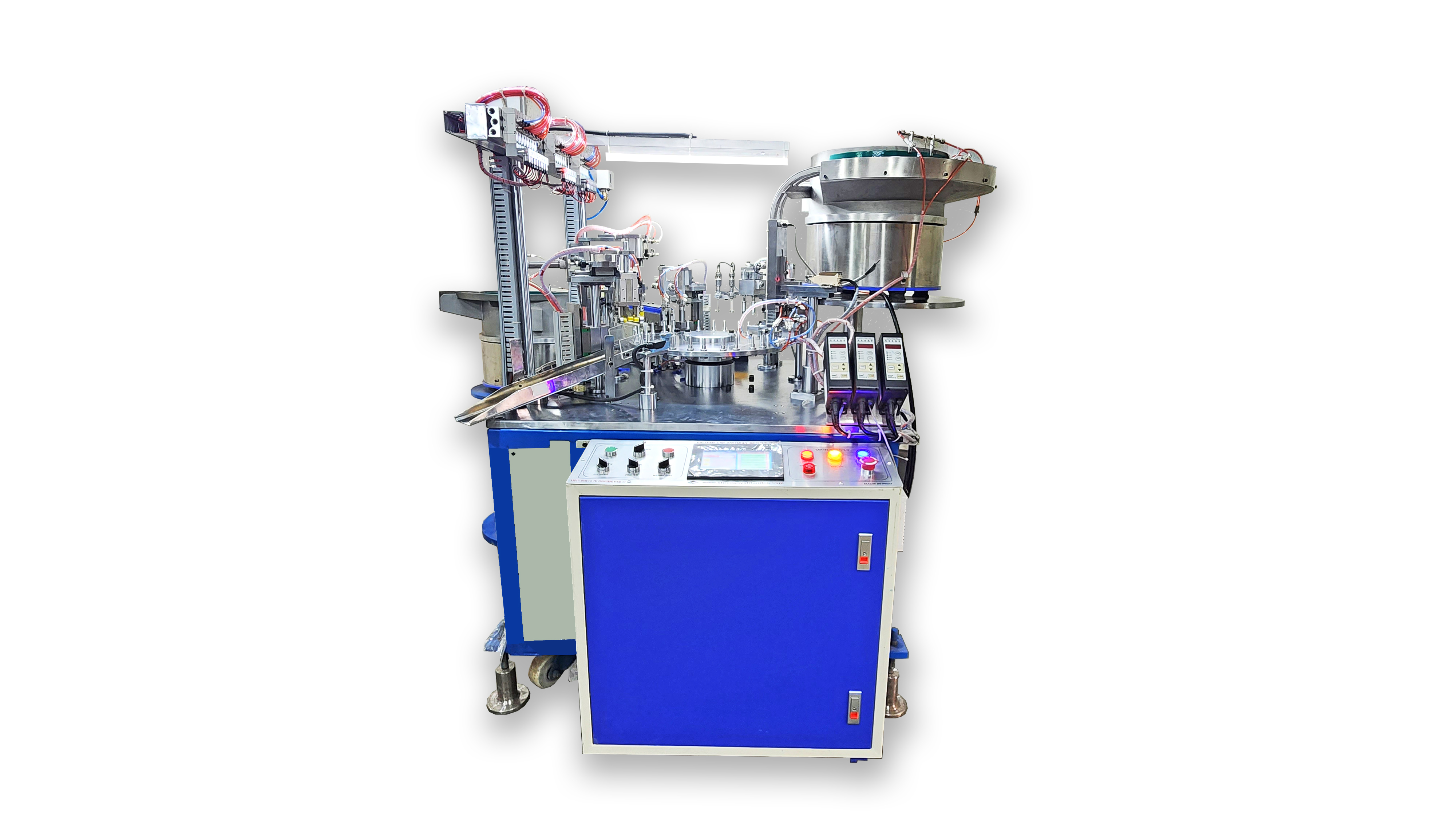

Cap Clip Assembly Machine

(MODEL : 2UP-CC)

Output: 50-60 caps/min
Power consumption : 3.0 Kw
